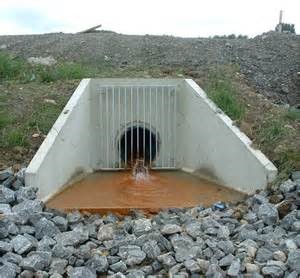

Name: Inspected Outfalls

Display Field: TRANSPORTATION.ssOutfall.MAXIMOID

Type: Feature Layer

Geometry Type: esriGeometryPoint

Description: OBJECTID: System-generated unique identifier for each record within the feature class.MAXIMOID: ID given to all features in order of creation and autopopulated with scripts.MAXIMOIDPFX: Prefix given to the MaximoID that identifies the feature type.PFX: This is the prefix that is given to a feature for Maximo to identify its type. ORIGINALSOURCE: Accuracy context for the record. This is what we know to be the original source from the data input. This may not be known from old input data. UPDATESOURCE: Accuracy context for the record. This field represents the latest spatial update to the record. This field will be overwritten. For instance, the original source could have been from an Asbuilt but it was then GPS’d in the field so the new Update Source is Differential GPS. GPS: Whether the feature has been GPS’d. Whether it be GPS’d in an asbuilt or by city staff. Quick information on the accuracy of the data. LOCATIONDESCRIPTION: Statement illustrating the whereabouts of a feature.OWNERSHIP: Organization with jurisdiction over the real-world feature represented in the feature class. Acronyms are listed below for clarity. COSM: City of San MarcosHCISD: Hays County Independent School DistrictSMCISD: San Marcos Consolidated Independent School DistrictTXDOT: Texas Department of TransportationUPRR: Union Pacific RailroadMAINTAINED: Organization responsible for the care of the real-world feature represented in the feature class. Acronyms are listed below for clarity. COSM: City of San MarcosHCISD: Hays County Independent School DistrictSMCISD: San Marcos Consolidated Independent School DistrictTXDOT: Texas Department of TransportationUPRR: Union Pacific RailroadMS4OUTFALL: This is a yes, no, unknown field to signify if this goes into the MS4 report and is very important to the Public Services Department. WATERSHED: Location to which the storm water discharges into which will eventually be a large watershed. The flow can be followed to see what watershed it is within. MEDIALINK: URL for a website related to the record.PRODUCTIONNOTES: Technical notes from GIS personnel.DESCRIPTION: Statement illustrating the feature.CREATEDBY: Name of the person logged into the system that GIS automatically stamps as the original creator. CREATEDDATE: Date/time stamp from the moment the GIS record was created.MODIFIEDBY: Name of the person logged into the system that GIS automatically stamps as the feature is modified. MODIFIEDDATE: Date/time stamp from the last moment the GIS record was changed.SHAPE: System-generated geometry type of the feature.GlobalID: System-generated unique identifier for each record that is required in replicated geodatabases.

Copyright Text:

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 2281594.418950215
YMin: 1.3840380245590389E7
XMax: 2332083.415741056
YMax: 1.3897810802316979E7
Spatial Reference: 102740  (2278)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: TRANSPORTATION.StormWaterInspections.RequiresCleaning
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
Style: esriSMSCircle
Color: [0, 77, 168, 255]
Size: 10.0
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
[0, 77, 168, 0] Width: 0
Default Label:
UniqueValueInfos:
• Value: N
  Label: No
  Description: N/A
  Symbol:

• Value: Y
  Label: Yes
  Description: N/A
  Symbol:

Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• TRANSPORTATION.ssOutfall.OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• TRANSPORTATION.ssOutfall.MAXIMOID ( type: esriFieldTypeInteger, alias: MaximoID )
• TRANSPORTATION.ssOutfall.MAXIMOIDPFX ( type: esriFieldTypeString, alias: MaximoID PFX, length: 25 )
• TRANSPORTATION.ssOutfall.PFX ( type: esriFieldTypeString, alias: PFX, length: 20 )
• TRANSPORTATION.ssOutfall.ORIGINALSOURCE ( type: esriFieldTypeString, alias: Original Source, length: 25 , Coded Values: [ASBUILT: Asbuilt] , [DIFFERENTIALGPS: Differential GPS] , [SURVEYGPS: Survey GPS] , ...5 more... )
• TRANSPORTATION.ssOutfall.UPDATESOURCE ( type: esriFieldTypeString, alias: Update Source, length: 25 , Coded Values: [ASBUILT: Asbuilt] , [DIFFERENTIALGPS: Differential GPS] , [SURVEYGPS: Survey GPS] , ...5 more... )
• TRANSPORTATION.ssOutfall.GPS ( type: esriFieldTypeString, alias: GPS, length: 10 , Coded Values: [YES: Yes] , [NO: No] , [UNKNOWN: Unknown] )
• TRANSPORTATION.ssOutfall.LOCATIONDESCRIPTION ( type: esriFieldTypeString, alias: Location Description, length: 100 )
• TRANSPORTATION.ssOutfall.OWNERSHIP ( type: esriFieldTypeString, alias: Ownership, length: 25 , Coded Values: [CALDWELLCOUNTY: Caldwell County] , [COMALCOUNTY: Comal County] , [COSM: City of San Marcos] , ...12 more... )
• TRANSPORTATION.ssOutfall.MAINTAINED ( type: esriFieldTypeString, alias: Maintained, length: 25 , Coded Values: [CALDWELLCOUNTY: Caldwell County] , [COMALCOUNTY: Comal County] , [COSM: City of San Marcos] , ...12 more... )
• TRANSPORTATION.ssOutfall.MS4OUTFALL ( type: esriFieldTypeString, alias: MS4 Outfall, length: 15 , Coded Values: [YES: Yes] , [NO: No] , [UNKNOWN: Unknown] )
• TRANSPORTATION.ssOutfall.WATERSHED ( type: esriFieldTypeString, alias: Watershed, length: 50 )
• TRANSPORTATION.ssOutfall.MEDIALINK ( type: esriFieldTypeString, alias: Media Link, length: 250 )
• TRANSPORTATION.ssOutfall.PRODUCTIONNOTES ( type: esriFieldTypeString, alias: Production Notes, length: 250 )
• TRANSPORTATION.ssOutfall.DESCRIPTION ( type: esriFieldTypeString, alias: Description, length: 250 )
• TRANSPORTATION.ssOutfall.created_user ( type: esriFieldTypeString, alias: created_user, length: 255 )
• TRANSPORTATION.ssOutfall.created_date ( type: esriFieldTypeDate, alias: created_date, length: 8 )
• TRANSPORTATION.ssOutfall.last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, length: 255 )
• TRANSPORTATION.ssOutfall.last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, length: 8 )
• TRANSPORTATION.ssOutfall.GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• TRANSPORTATION.ssOutfall.SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )
• TRANSPORTATION.ssOutfall.Status ( type: esriFieldTypeString, alias: Status, length: 8 , Coded Values: [Active: Active] , [Proposed: Proposed] )
• TRANSPORTATION.ssOutfall.PROJECT ( type: esriFieldTypeString, alias: PROJECT, length: 255 )
• TRANSPORTATION.ssOutfall.ACCEPTANCEDATE ( type: esriFieldTypeDate, alias: ACCEPTANCEDATE, length: 8 )
• TRANSPORTATION.ssOutfall.WARRANTYDATE ( type: esriFieldTypeDate, alias: WARRANTYDATE, length: 8 )
• TRANSPORTATION.StormWaterInspections.OBJECTID ( type: esriFieldTypeInteger, alias: OBJECTID )
• TRANSPORTATION.StormWaterInspections.MaximoID ( type: esriFieldTypeString, alias: MaximoID:, length: 20 )
• TRANSPORTATION.StormWaterInspections.StructuralCondition ( type: esriFieldTypeString, alias: Structural Condition:, length: 20 , Coded Values: [A: New/Good: A: New/Good] , [B: Fair: B: Fair] , [C: Poor (Replace): C: Poor (Replace)] , ...1 more... )
• TRANSPORTATION.StormWaterInspections.RequiresRepairs ( type: esriFieldTypeString, alias: Requires Repairs?, length: 5 , Coded Values: [Y: Yes] , [N: No] , [U: UNKNOWN] )
• TRANSPORTATION.StormWaterInspections.RequiresCleaning ( type: esriFieldTypeString, alias: Requires Cleaning?, length: 5 , Coded Values: [Y: Yes] , [N: No] , [U: UNKNOWN] )
• TRANSPORTATION.StormWaterInspections.ObservedDebrisAccumulation ( type: esriFieldTypeInteger, alias: Observed Debris Accumulation (Inches): )
• TRANSPORTATION.StormWaterInspections.TypeOfDebris ( type: esriFieldTypeString, alias: Type of Debris:, length: 50 , Coded Values: [Sediment: Sediment] , [Floatables: Floatables] , [Yard Waste: Yard Waste] , ...3 more... )
• TRANSPORTATION.StormWaterInspections.InletMarkerPresent ( type: esriFieldTypeString, alias: Inlet Marker Present?, length: 5 , Coded Values: [Y: Yes] , [N: No] , [U: UNKNOWN] )
• TRANSPORTATION.StormWaterInspections.InspectDate ( type: esriFieldTypeDate, alias: Inspection Date:, length: 8 )
• TRANSPORTATION.StormWaterInspections.Comments ( type: esriFieldTypeString, alias: Inspection Comments:, length: 200 )
• TRANSPORTATION.StormWaterInspections.MapError ( type: esriFieldTypeString, alias: Map change needed?, length: 50 , Coded Values: [Y: Yes] , [N: No] , [U: UNKNOWN] )
• TRANSPORTATION.StormWaterInspections.MapErrorCmnts ( type: esriFieldTypeString, alias: Map Error Comments:, length: 200 )
• TRANSPORTATION.StormWaterInspections.WorkOrder ( type: esriFieldTypeString, alias: Work Order Number:, length: 50 )
• TRANSPORTATION.StormWaterInspections.GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• TRANSPORTATION.StormWaterInspections.HasBeenCleaned ( type: esriFieldTypeString, alias: Has been cleaned?, length: 10 , Coded Values: [Y: Yes] , [N: No] , [U: UNKNOWN] )
• TRANSPORTATION.StormWaterInspections.CleanDate ( type: esriFieldTypeDate, alias: Clean Date, length: 8 )
• TRANSPORTATION.StormWaterInspections.CleanComments ( type: esriFieldTypeString, alias: CleanComments, length: 200 )
• TRANSPORTATION.StormWaterInspections.created_user ( type: esriFieldTypeString, alias: created_user, length: 255 )
• TRANSPORTATION.StormWaterInspections.created_date ( type: esriFieldTypeDate, alias: created_date, length: 8 )
• TRANSPORTATION.StormWaterInspections.last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, length: 255 )
• TRANSPORTATION.StormWaterInspections.last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, length: 8 )
• TRANSPORTATION.StormWaterInspections.IsProblemArea ( type: esriFieldTypeString, alias: Is Problem Area?, length: 10 , Coded Values: [Yes: Yes] , [No: No] )

Relationships:

• StormWaterInspections (0) -- Related To: Stormwater Inspections (93)

Supported Operations:   Query   Query Attachments   Query Analytic   Query Related Records   Generate Renderer   Return Updates
